2XR FIT Crankset Rental

From $50 + deposit

Appleman 2XR-FIT Crank arms 100-175mm
2XR FIT Crank Arms Rental
appleman 2xr spindle
Spindle for FIT Crank Rental
Appleman 2xr road spider
Spider For FIT Crank Rental
chainring and bolts
Chainring for FIT Crank Rental
BOTTOM BRACKET
Bottom Bracket + Tool For FIT Crank Rental

This page is for crank RENTAL only.
If you want to buy and keep 2XR FIT cranks, buy them here.

Rental is for USA addresses only!

Feel it to Believe it

We want you to be riding the best crank length for you. Sometimes you just gotta’ try it before you buy it.

The 2XR FIT Crankset Rental program lets you try different length cranks on your own bike, from the comfort of your own saddle.

How Does Rental Work?

You pay full price deposit for the FIT cranks and other parts up front.

Upon returning the cranks back to Appleman, we refund you the full amount minus the rental costs.

You’ll have up to 3 weeks from delivery day to install and test the cranks.

Cranks and parts need to be shipped in this 3 week window using the provided shipping label.

If you want to purchase your own 2XR Crankset, this is the time to do it! Fill out the included order form with the rental cranks with what you want and you’ll receive a $50 credit towards the new cranks.

After we receive the cranks, we’ll check to see if you wanted to order a crankset and then refund the remaining balance after taking out rental costs.

Rental costs

  • Rental Cost = $150 (or $50 with purchase of 2XR Crankset at the time or returning the rental cranks.) ($585 upfront deposit)
  • optional Bottom Bracket + installation tool rental = $15 ($50 up front deposit)
  • optional Chainring rental = $15-$20 ($50 up front deposit)
  • Free shipping both ways (rental only available in USA)
  • After 3 weeks, a $50/week late fee will be assessed.

Example 1: You rent a crankset + bottom bracket + chainring… that’s $725 up front.

You test and successfully return the all the parts and decide not to purchase a new crankset.

Cost to you is $180. You receive a refund of $545.

Example 2: You rent a crankset + bottom bracket + chainring… that’s $725 up front.

You test and successfully return all the parts and decide you want to purchase a sweet new 2XR Crankset! Your new crankset cost is $525. You get a $100 credit towards this new crankset.

Cost of rental + new cranks is $605. You receive a refund of $120 and get new cranks.

What Does Rental Include?

  • 1 pair – 2XR FIT Crank Arms
  • 1 – 2XR Spider
  • 1 – 2XR Spindle
  • 1 – set of spindle spacers
  • 1 – return shipping label
  • 1 – new crank order form

What Isn’t Included?

  • chainring (you can rent one)
  • bottom bracket (you can rent one)
  • tools (only a 5mm allen is required to install the cranks)
  • installation of cranks, bottom bracket, chainrings or any parts that you may need when switching cranks

Will I need to Adjust My Bike?

Installing the 2XR FIT Crankset on your bike may require a new bottom bracket and chainrings.

Luckily the 2XR cranks use a 30mm spindle which is a common size and fits on most bikes (see compatibility below).

Some adjustment may be required to shifting if you have a 2x and front derailleur.

The key here is to know what you’ll need and have your bike prepped for the cranks so you can maximize time riding the cranks, not adjusting your bike.

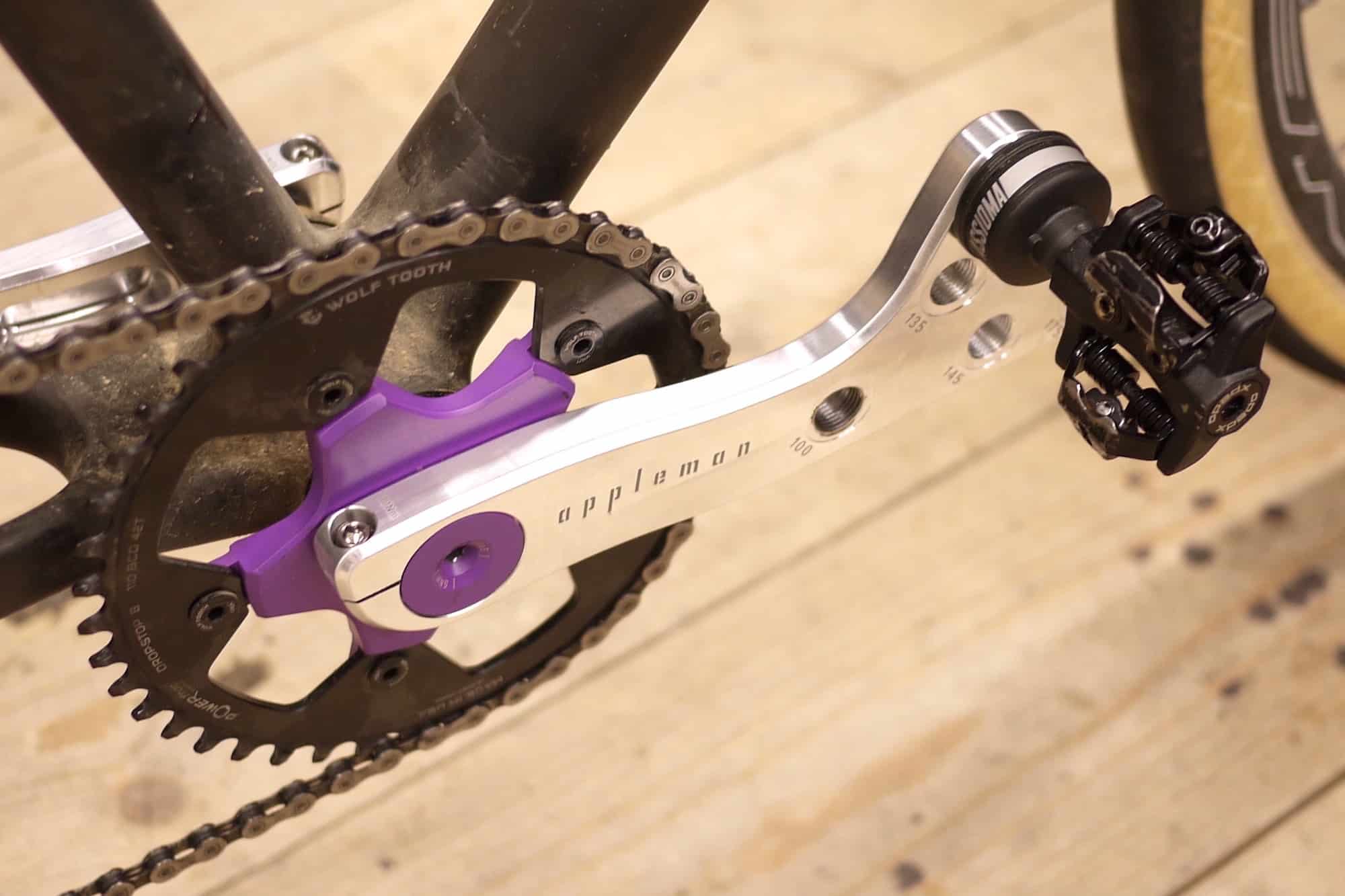

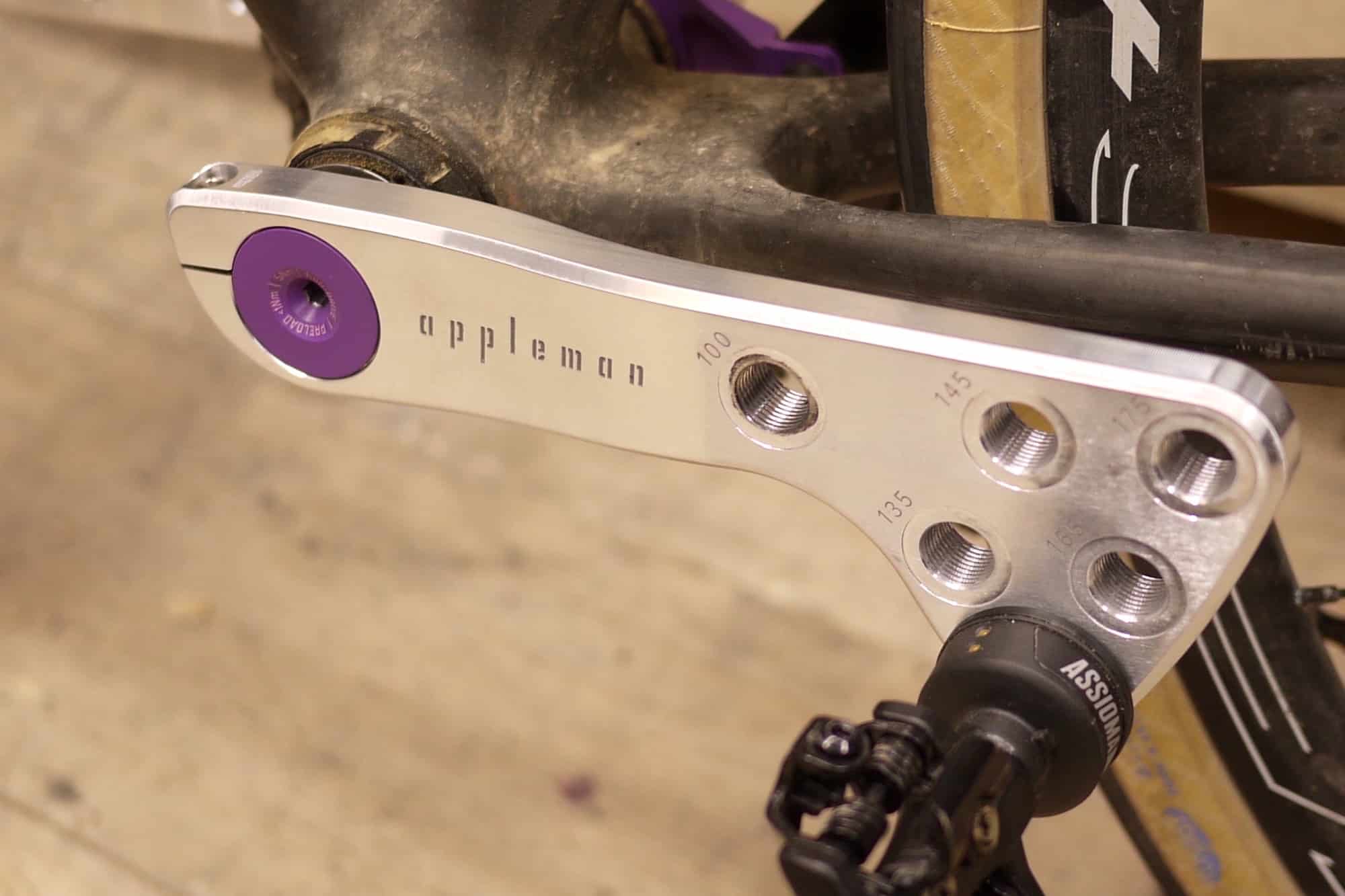

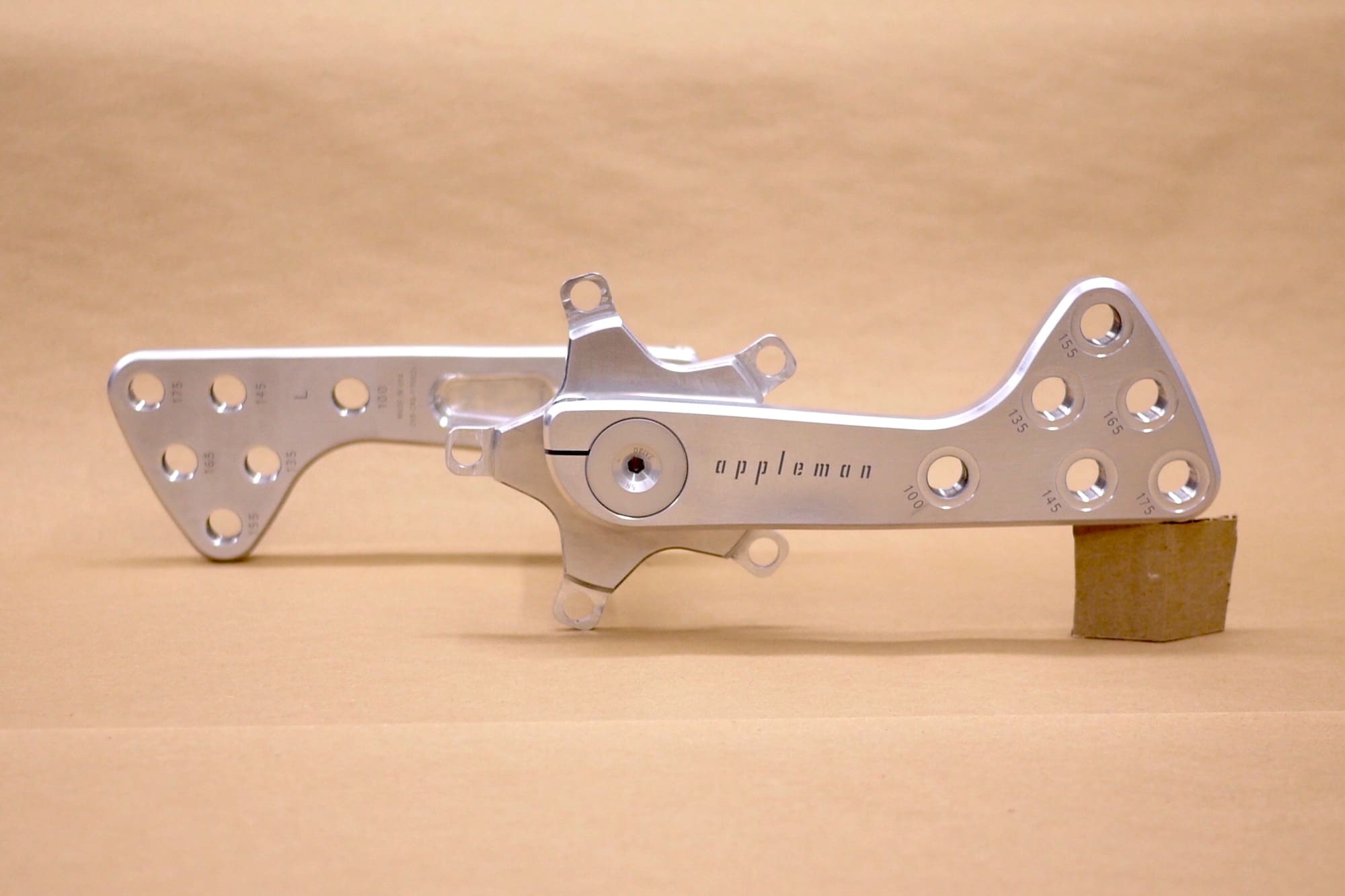

2XR Fit Crank Features

6 Crank Lengths: 175, 165, 155, 145, 135, 100mm

Covers a wide range of rider size, riding styles and physical peculiarities.

5 Spindle Widths: Road, gravel, mountain, mid-fat and fat bikes.

Easily Swappable: Quickly change crank length simply by removing/installing the pedals (no proprietary tools)

30mm Diameter Spindle: Common size that fits most bikes. See specification chart below for full compatibility info.

Appleman 2XR Crankset Specifications

SpindleROADADVENTUREMOUNTAINMID-FATFAT
Crank Arm Length175 / 170 / 165 / 160 / 155 / 145 / 135 / 100
Q Factor *150156168183201
Spindle Diameter30
Bottom Bracket TypesBSA, ITA, PF30, BB30, T47, 386EVO, BBRight, BB86, BB92
Any BB with 30mm bearing and meets outer bearing width requirements
(note: not compatible with Trek's old BB90/BB95 standard)
BB Shell Width68/8668/86 or 73/9273/92 (or 68/86***)83/107 (or 73/92***)100/121
Outer Bearing Width**91.591.5 or 96.596.5 (or 91.5*** )106.5 ( or 96.5***)123.5
Types of BikeRoad, CX, Gravel, TrackCX, Gravel, MountainMountainMid-FatFat
Chainline 2XR Direct Mount 1X38/42t = 46.5
28/32t = 44.5
38/42t = 49.5
28/32t = 47.5
38/42t = 55.5
28/32t = 53.5
38/42t = 63
28/32t = 61
38/42t = 73
28/32t = 71
Chainline (inner)42 on track spider434956.5
super boost
66.5
fat 177 rear end
Chainline (outer)47.5
recommended for 1x
50.5
recommended for 1x
56.5
super boost
64
fat 177 rear end
74
fat 197 rear end
Chainline (2x)4447536070
Distance Between Crank Arms Inside Faces123129141156174
Spider use, typical110x5, 110x4, 144x5 (track)110x5, 110x4, 104x4104x4104x4104x4

*Q-factor has a small amount of adjustability and is +0.5mm/-1.5mm. Dependent on frame/BB widths and spacers/shims

**Outer Bearing width is the width of the installed bottom bracket bearings and seals

***Requires two, 2.5mm spacers or General Purpose Spacer Pack (purchased separately on the Spindle Spacers page)

Purple values are especially important to compare against your current crankset when determining compatibility. 2XR Cranks are designed to fit similar to many existing cranks, but not all setups are the same.

all measurements in millimeters
